WEI-LAN82574L
·Adopting Mini PCI-e slot design;
·Supports automatic adaptation to link speeds of 10/100/1000Mbps.

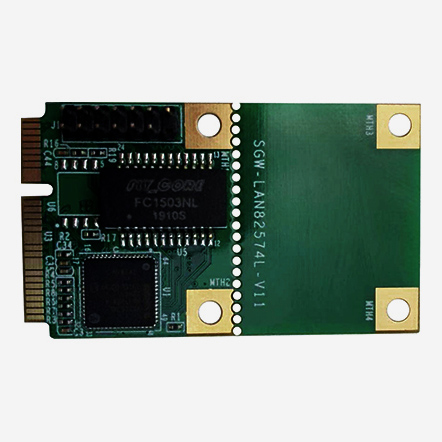

WEI-LAN82574L is a Mini PCI-e bus interface Gigabit single port Ethernet adapter card developed by Hangzhou Yanzhi Technology Co., Ltd. based on the Intel 82574L main control chip. This adapter card adopts a Mini PCI-e slot design, designed for use on industrial devices such as industrial computers and single board computers that contain Mini PCIe interface slots. This Ethernet adapter card supports automatic adaptation to link speeds of 10/100/1000Mbps. This Ethernet adapter can be widely used in network devices such as industrial computers, embedded computers, single board computers, digital multimedia, etc. It can support systems such as Windows and Linux.
主要參數 | |
控制器 | Intel 82574L |
網絡通道 | 1個 |
端口類型 | 1個1000M RJ45端口 |
端口速率 | 10/100/1000Mbps |
PCIe總線 | Mini PCI Express v1.0 (2.5GT/s) |
支持標準 | IEEE 802.3 IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
尺寸 | 50.9mm×30mm×9.0mm |
系統/軟件 | |
支持操作系統 | Windiows、Linux、RHEL/CentOS、FreeBSD、VMware ESX/ESXi |
環境參數 | |
操作溫度 | 0~55℃ |
儲存溫度 | -40~70℃ |
相對濕度 | 5%~90%@35℃（非凝結） |
震動 | 5G @7~2000Hz |
沖擊 | 50G@0.5ms，半正弦波 |
